VS310 SCADA Server - Ethernet connection

Report Data from Modbus RTU, TCP and Ethernet/IP Devices with secure connection to remote industrial devices

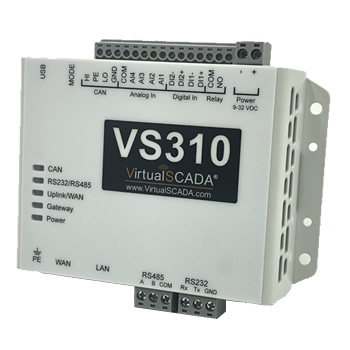

VS310

The VS310 connects to industrial machinery via Modbus (serial), Modbus TCP/IP Ethernet, EtherNet/IP, CANbus (J1939) or I/O and sends data to the cloud server via direct Ethernet communication. This VS310 will make it easy to collect data from a remote system, and securely get to cloud server. Data will be stored securely, with backup and redundancy of databases. It assures you that you can access your data when you need it. You can access the data through the web interface, with tools to build presentation pages using dashboard widgets. It makes it easy for you to focus on your business.

The VS310 is an advanced SCADA server that can handle many parameters both for logging and alarms. By having communication redundancy data is garuanteed to be stored on our cloud server. The VS310 supports “Remote Access” functionality. This means that users can open up a secure connection to remote machinery and configure or operate it from any location using standard software applications. Remote access provides a secure data tunnel to the remotely located equipment.

For example, with a VS310 connected to a PLC, it is possible to perform remote debugging or programming of the PLC from any location, using the same PLC configuration software as usual. Configuration of the VS310 is done directly online via the cloud server. The cloud server is where your data can be monitored, analyzed or further processed (alarm routing, RSS, etc). The VS310 is a breeze to setup, No IT expertise required, No firewall issues, No VPN required, No static IP needed.

Brochure for Simplex Pump Systems (PDF 3.26 MB)

Brochure for Multiplex Pump Systems (PDF 3.45 MB)

Configuration Software (ZIP 0.98 MB) (For firmware version up to 1.6)

USB Driver (ZIP/CAB 12KB)

Our SCADA Servers work out of the box, no setup required, ready to go for your application.

Call us for pricing and delivery.

Application Brochures
Specifications

Serial port #1

RS-232

Serial port #2

RS-485

Serial baud rate

Up to 115,2 kbit/s

Digital Inputs

2 (Dry contact)

Analog Inputs

4, all supporting 0-10 V or 0-20 mA (2 supporting PT100)

Relay Output

1, (24V DC / 1A)

Protocols

Modbus RTU, ModbusASCII, SNMP, Modbus TCP/IP, EtherNet/IP, CANbus (J1939)

Type of housing

Metal

Wallmount / DIN rail

YES / YES

Dimensions

3.62 " x 5.31" x 1.06" (92 x 135 x 27 mm)

Operating temperature

-40°F to +149°F / -40 to +65 °C

Power supply

9-32 V DC

Power consumption

4.5 W

Certifications

CE (CULUS, FCC, IC, PTCRB. Telec, RCM ATEX/Haz.Loc pending)

Ordering Part Number

VS310
